Product design
Prototyping

Rubber Band Toy

A strict material brief became a working two-player tabletop game. I developed the concept, built the parts and refined the play experience through physical prototyping.

The finished wooden tabletop toy with rubber-band launchers, targets and balls

Role: Individual project
Duration: 8 weeks
Materials: Wood and rubber bands
Focus: Prototyping and iteration

The brief

Design a toy for a specific person using rubber bands and only one additional material, without glue, nails or mechanical fasteners. I chose my sports-loving cousin and developed a compact tabletop game for two players.

Choosing wood pushed me to solve assembly and movement through the materials themselves. Early sketches explored the shared playing field, the launchers and the rubber-band attachments.

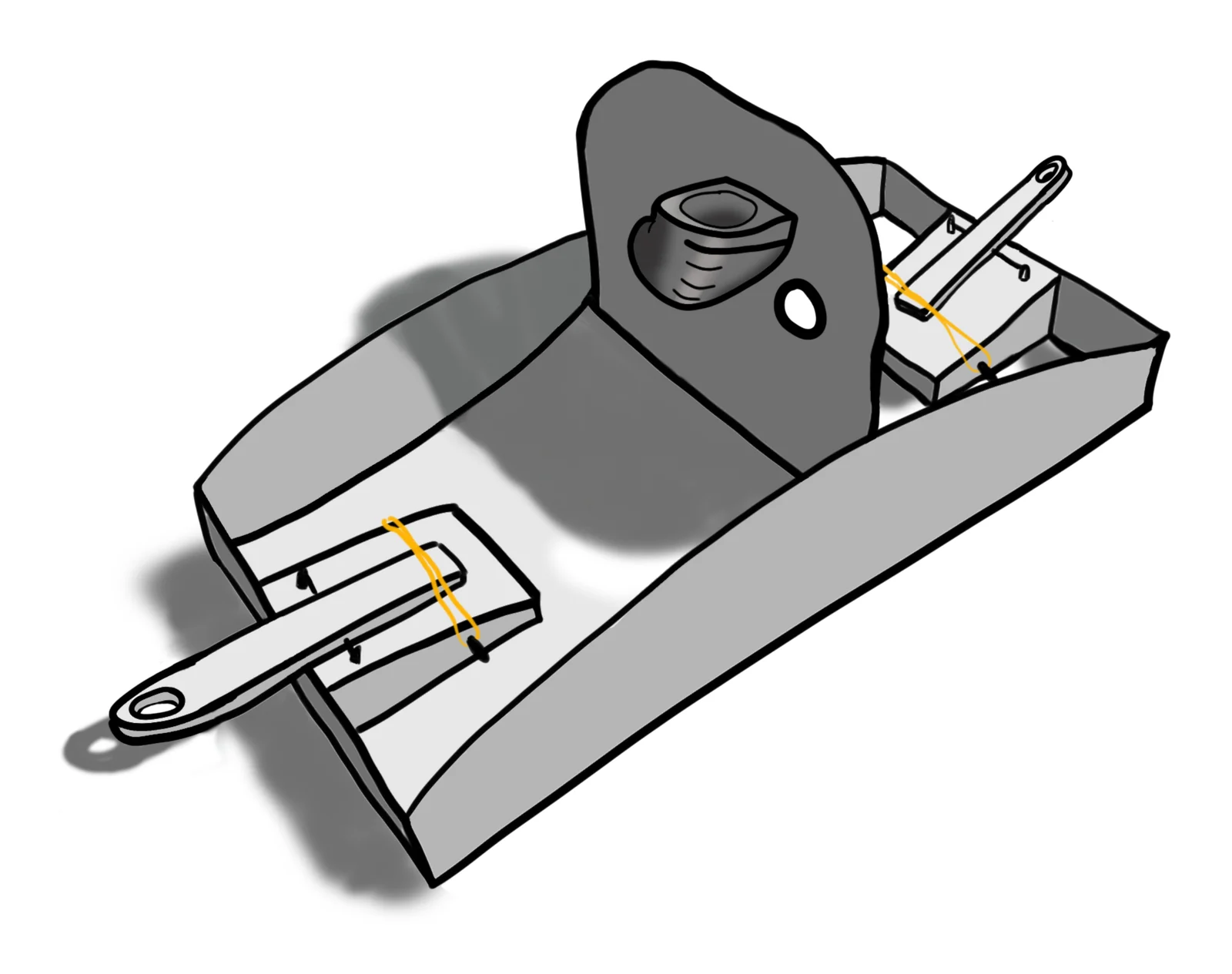

Sketch of the tabletop game with launchers and a central divider — Exploring the game layout

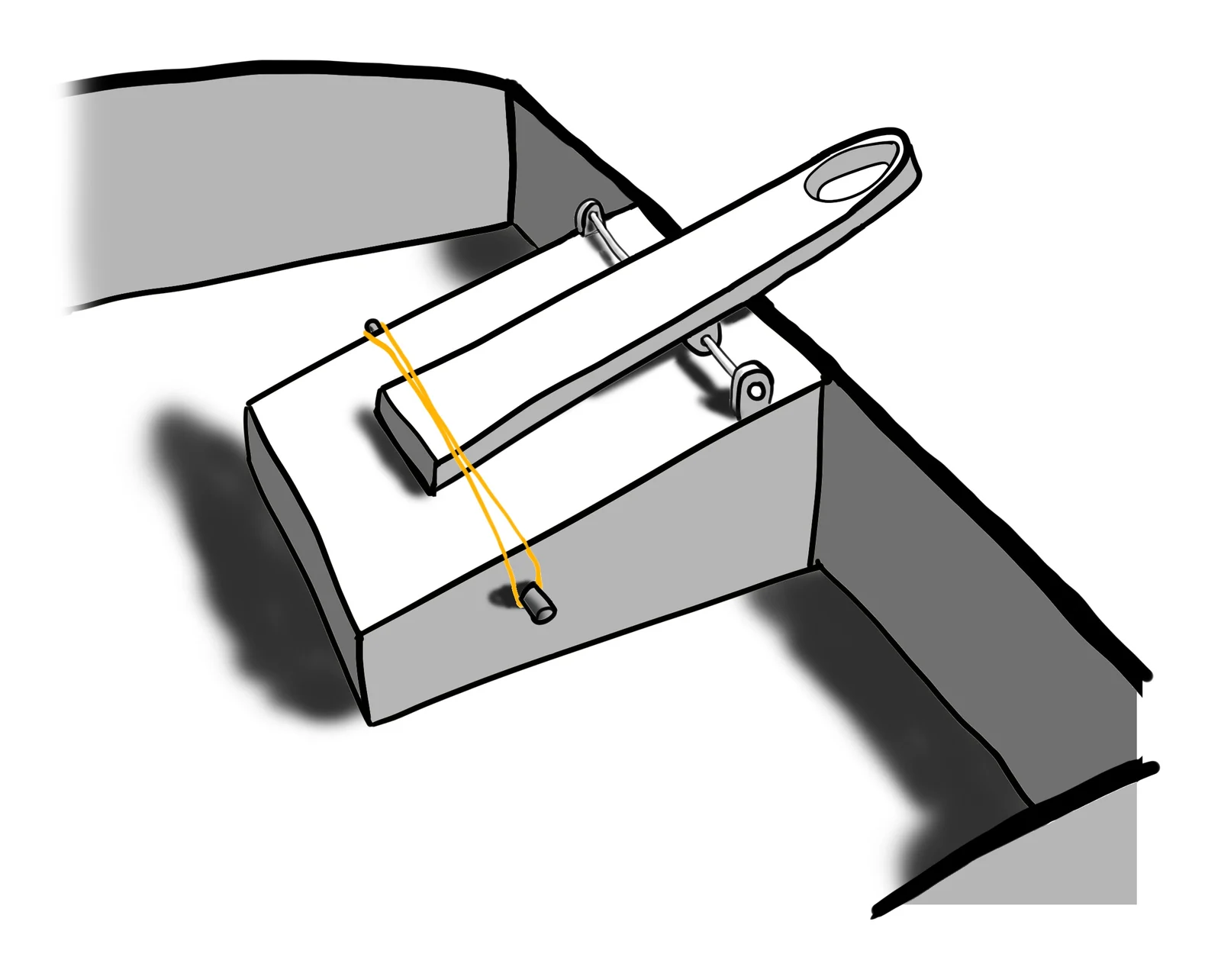

Detailed sketch of the launcher and rubber-band attachment — Developing the launcher

Prototyping and iteration

I used early physical models to turn the sketches into something I could build and try. Testing the launcher and target together helped me evaluate the layout and decide what to refine.

These tests guided the next iteration and the final arrangement. The goal was a clear, tactile interaction: load a ball, choose an angle and release the launcher.

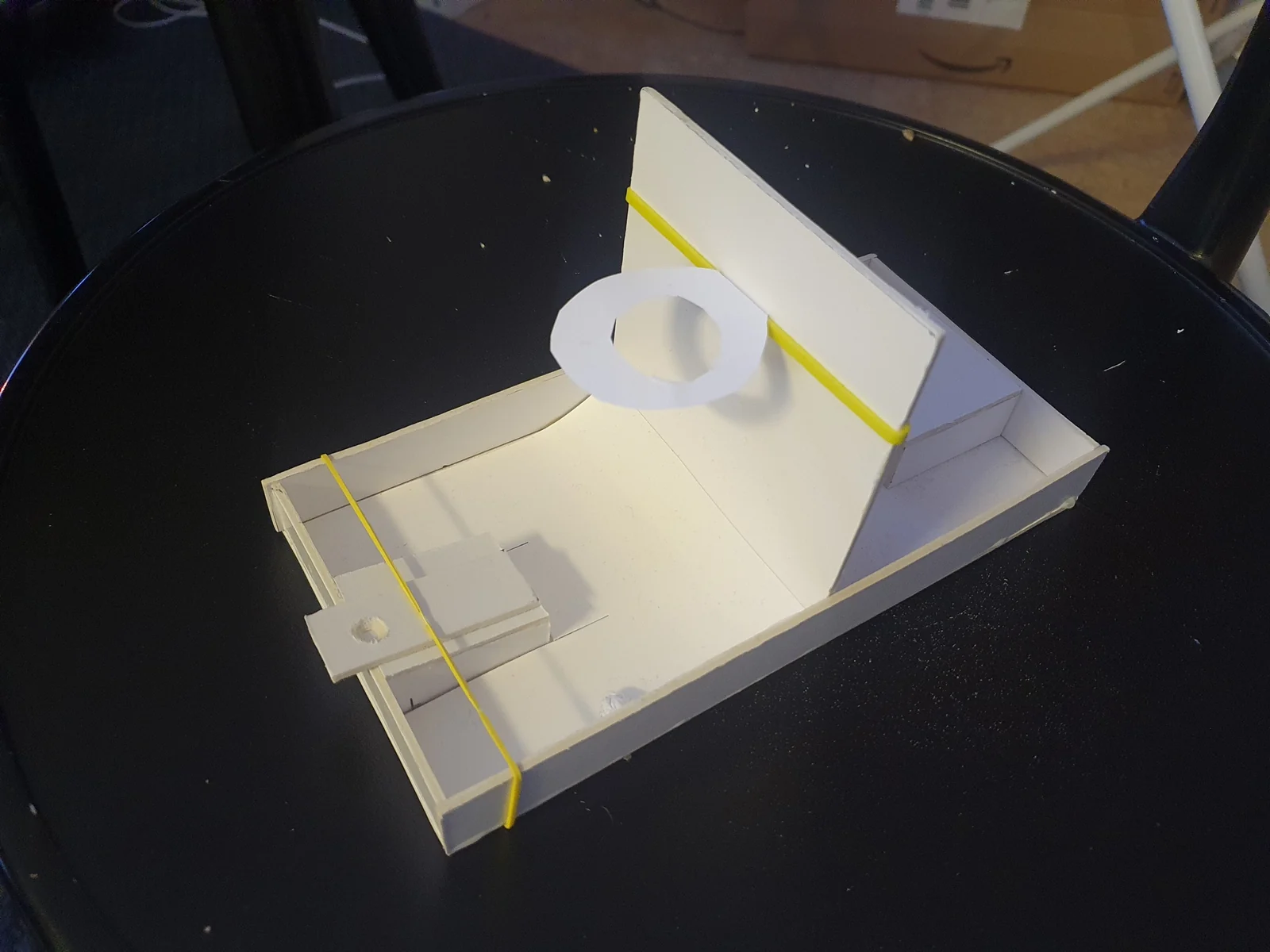

Early physical prototype of the tabletop game's launcher and frame — An early working prototype

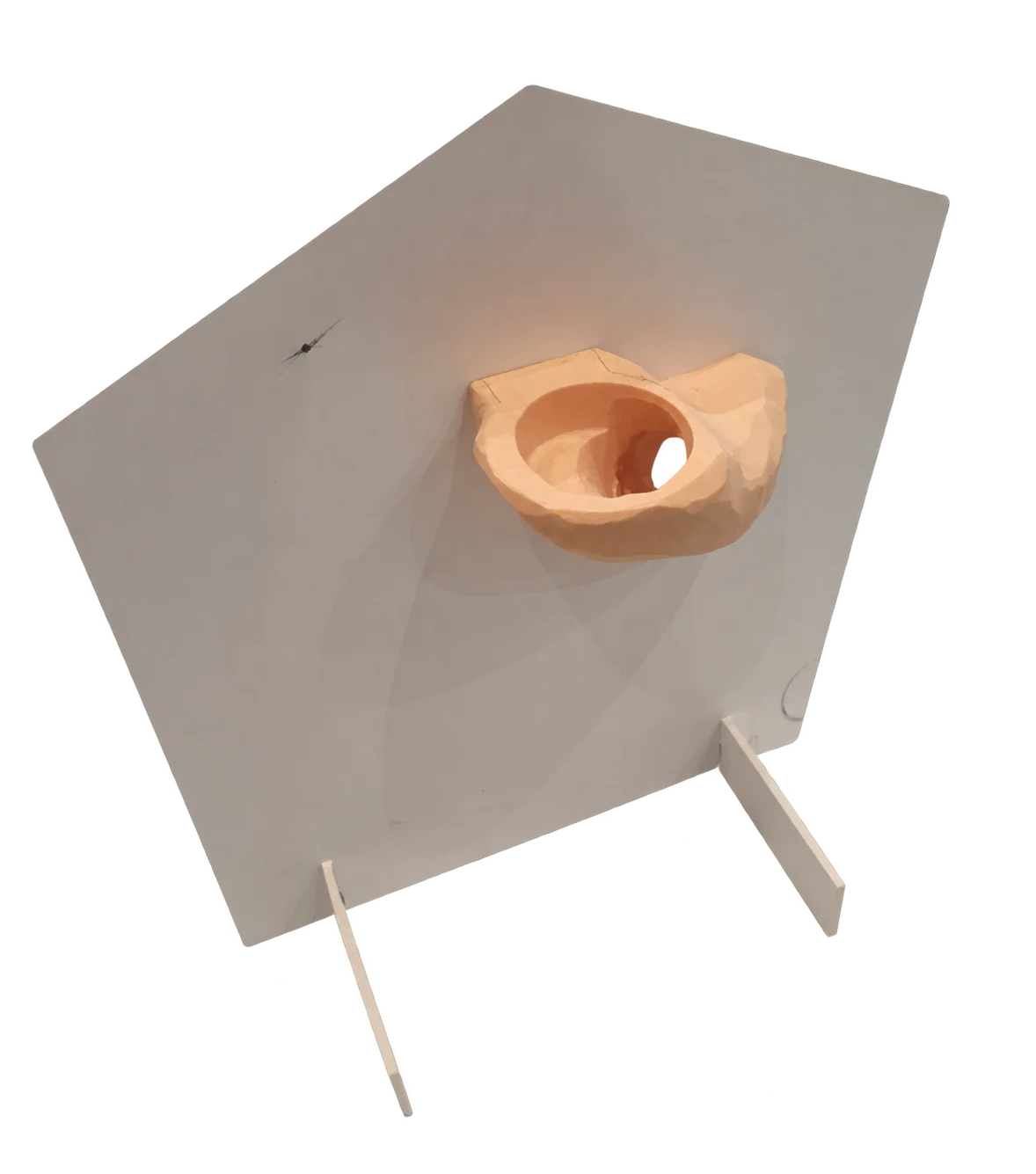

Prototype hoop tested from three axes on a white backboard — Checking the target from different angles

Making the prototype

I translated the sketches into interlocking panels, sliding components and dowel-held details. Box joints hold the frame together without glue, while a tongue-and-groove centre board connects the two play areas.

The workshop process exposed the difference between ideal geometry and real material behaviour. I refined the joints and fit so the parts could be assembled by hand and stay together during play.

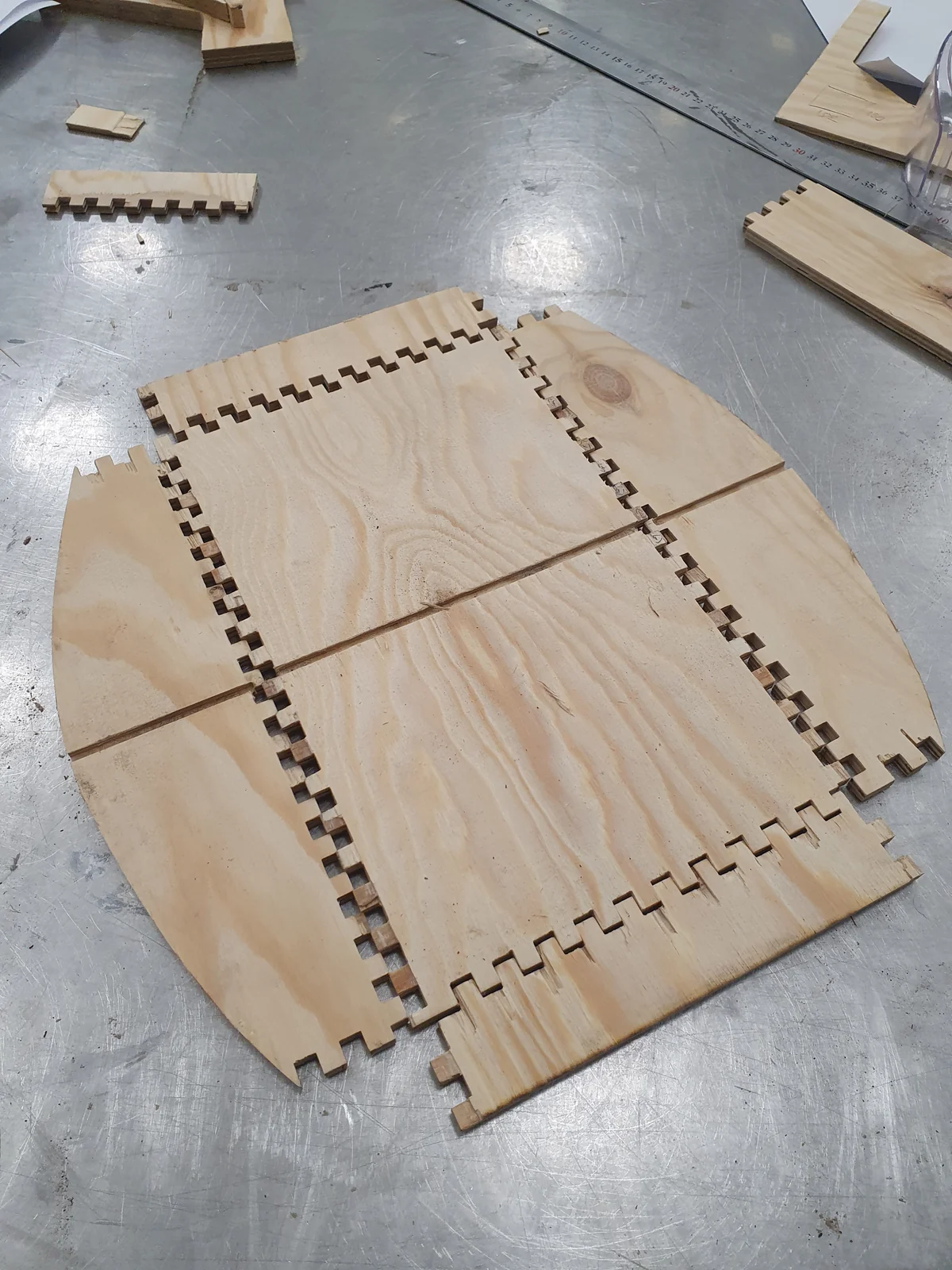

Laser-cut wooden panels and box joints on a workshop table — Preparing the interlocking parts

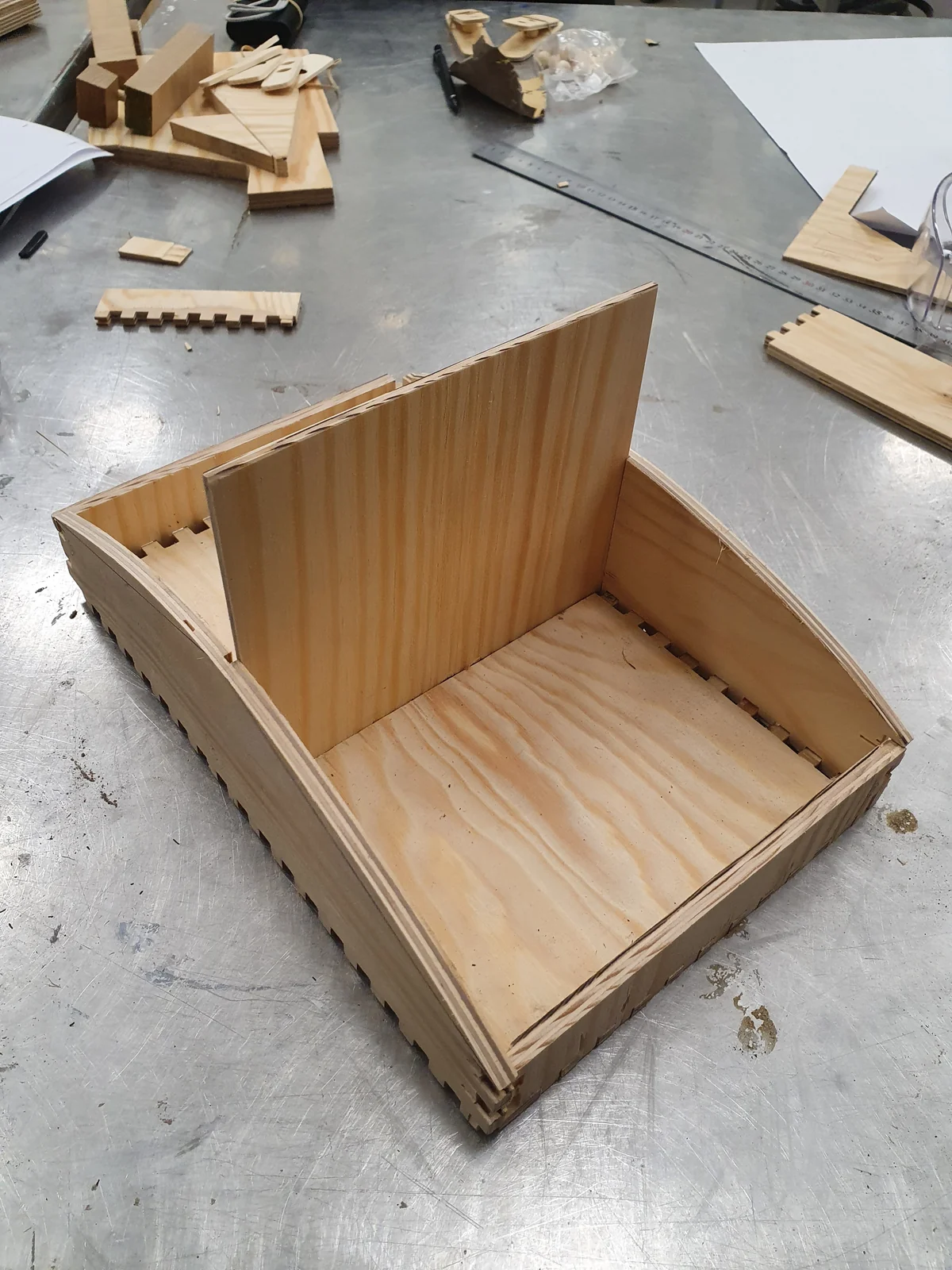

Wooden game frame assembled in the workshop — Assembling the frame without glue

The result

The finished wooden game has two opposing launchers and central targets. Rubber bands power the action and remain visible, making the mechanism easy to understand.

Both players begin with an equal number of balls. A successful basket sends a ball to the opponent, and the first player to clear their side wins. The mirrored layout keeps both players involved while leaving room for skill, timing and playful competition.

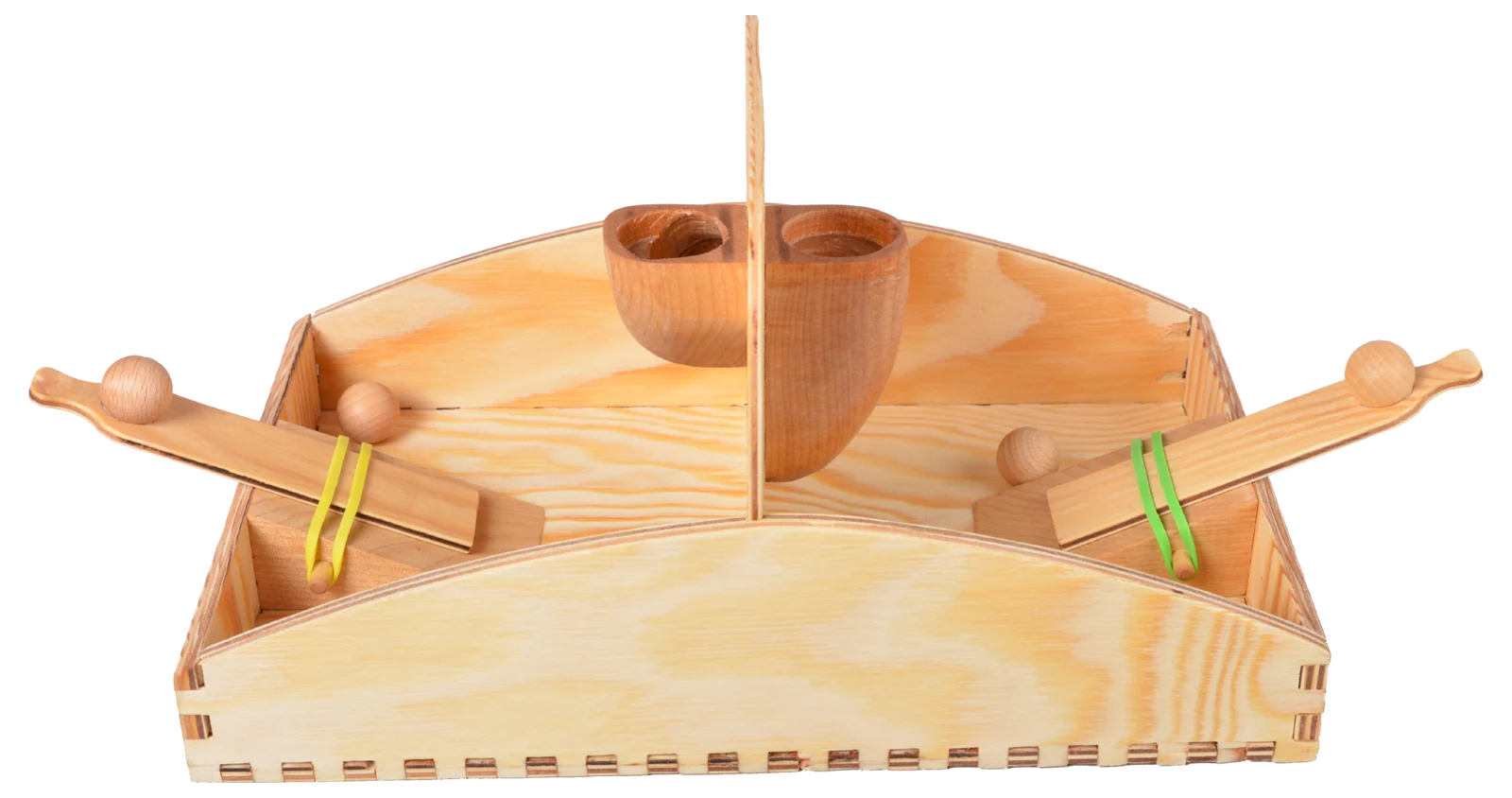

Front view of the finished game with two launchers — The complete two-player game

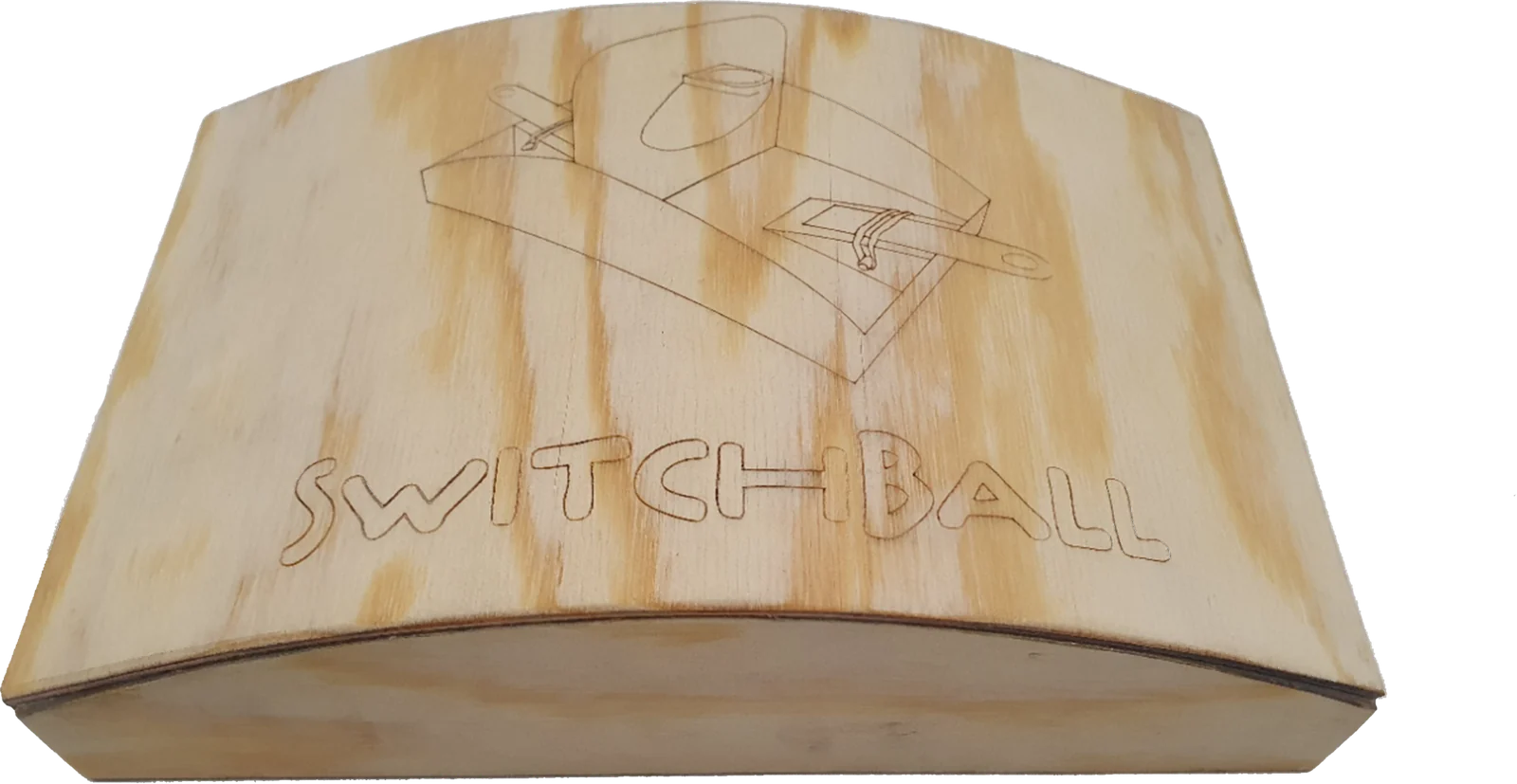

Open wooden package with a sketched lid — Packaging and first setup

What I learned

I learned how to move from an idea to a working prototype through sketching, building and iteration. Testing early models helped me identify what needed to change and guide the next version. Making the final parts strengthened my understanding of material behaviour, tolerances and assembly, connecting design decisions to how a product is made and used.

Skills I developed: Turning sketches into functional physical prototypes.

Using testing to guide design decisions and iteration.

Designing parts for reliable fit and assembly.
Tools & methods: Hand sketching and physical mock-ups.

Laser cutting and woodworking.

Physical prototypes and play testing.
